Support for Microsoft Information Protection
ReplaceMagci supports changes of encrypted documents via Azure/Microsoft Information Protection (AIP/MIP). Currently, supported document formats are: Excel, Word and PowerPoint.
MIP is supported only when WebLogon is used as authentication method.
Microsoft prerequisites (without all of them MIcrosoft will not allow application to use MIP/AIP):
- Make sure that you enter the correct user name and password. To check that you entered them correctly, sign in to the Office 365 portal.
- You must be a global administrator to connect to Azure Information Protection.
- To use Azure Information Protection, you must have a subscription that includes Azure Information Protection.
- Work with the network administrator to make sure that the network meets the requirements for connecting to Azure Information Protection. The requirements are as follows:
1. Incoming and outgoing connections to *.aadrm.com are enabled.
2. Incoming and outgoing connections to *.cloudapp.net (rmsoprod*-b-rms*.cloudapp.net) are enabled.
3. Port 443 is open.
How to configure for Azure/Microsoft Information Protection - to use it configuration on Azure portal and also ReplaceMagic is required:
Go to: https://portal.azure.com
Click on “App registration” or search for:
Select “New registration”:
Type application name (please use ReplaceMagic) and select account type, for example, “Accounts in this organizational directory only…”:
Click on Register.
Click on Redirect URIs:
Click Add platform:
Select Mobile and Desktop application:
Select first checkbox:
Click on App permissions:

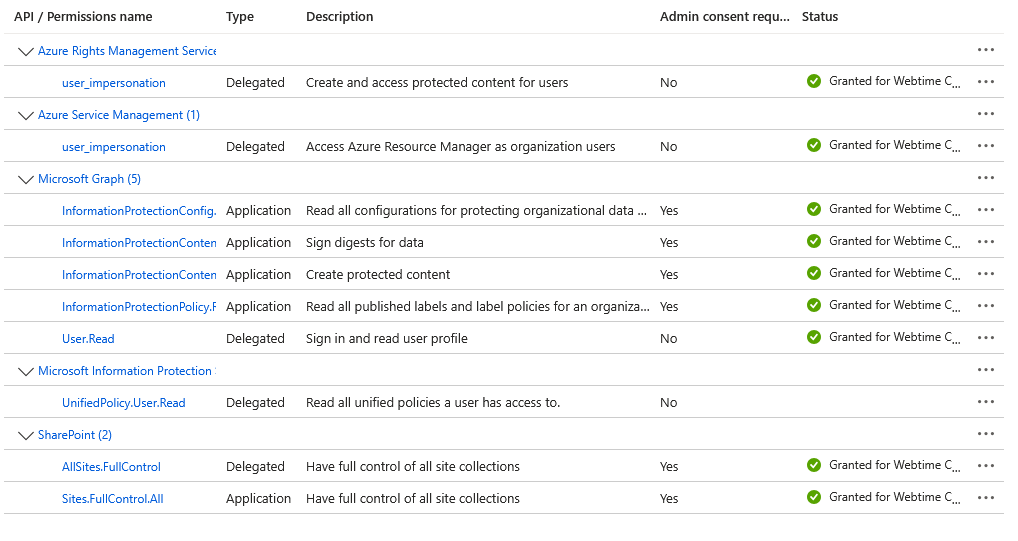

Select following permissions:
If required also “Grant admin consent” for your organization.
Permissions for Microsoft Information Protection Sync Service are, most likely, under -> Add a Permission -> APIs my organization uses:
Go to Expose an API and click on Add a scope there you can just click on “Save and continue”
Fill the form, for example, like:
And click on “Add scope”
On same page click on:
Fill the form. First check checkbox and client ID field copy ClientID from authorized scope or from Overview page of just created application:
Go to Owners and add user who is going to use ReplaceMagic to fix documents protected with MIP:

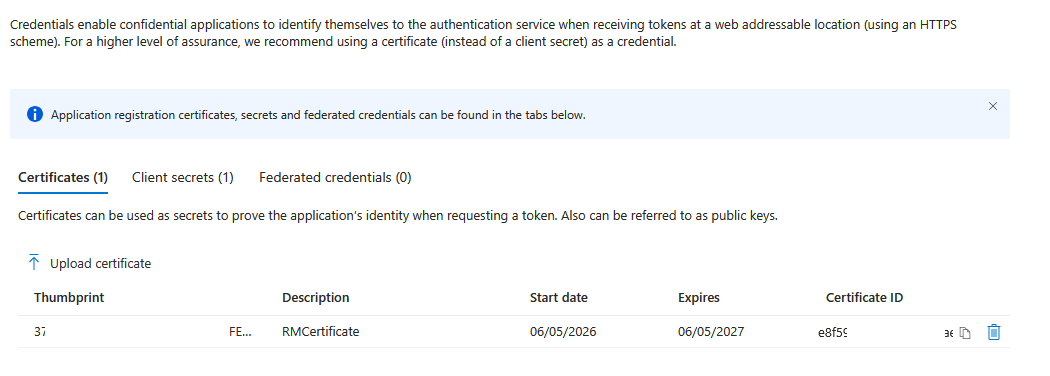

Recently Microsoft introduced requirement to user certificates so please configure one (https://learn.microsoft.com/en-us/entra/identity-platform/howto-create-self-signed-certificate) and add it to the application registration:
TO BE COMPLETED - FURTHER DESCRIPTION TO FOLLOW BEFORE OFFICIAL REPLACAMAGIC RELEASE
To setup ReplaceMagic to use MIP on form where you are creating select “Use MIP” and enter data from Azure portal:
If after logging to your SharePoint reading of protected files does not work, please go to c:\users\username\appdata\roaming\replacemagic\logs and check if in some of logs you have error message like:
Message: LoadLibrary failed for: [C:\Program Files (x86)\ReplaceMagic\x64\mip_dotnet.dll]
Source: Microsoft.InformationProtectiona
If yes, then (re-)install Microsoft Visual C++ Redistributable components for x64 platform:
Direct link: https://aka.ms/vs/17/release/vc_redist.x64.exe (computer restart is required).
Remark: ReplaceMagic will need to save encrypted documents locally which will be deleted after encryption/decryption is completed.
IMPORTANT - User validation or problems to process encrypted documents - you can validate your user by using PowerShell (version 5) and running command Connect-AipService. If you see error message:
Connect-AipService : The attempt to connect to the Azure Information Protection service failed. Verify that the
credentials you are using are correct and try again. If you have continued problems, see
http://go.microsoft.com/fwlink/?LinkId=251909.
Most likely your user either does not have:
- Subscription containing Azure Information Protection/Microsoft Information Protection or
- Is not Global admin
More details (see prerequisites above) in: https://learn.microsoft.com/en-us/troubleshoot/entra/entra-id/user-prov-sync/fail-connect-azure-information-protection-powershell
Unfortunately, without Microsoft prerequisites ReplaceMagic (or any other tool) will not be able to process encrypted documents.
Remark: It might happen that for first few documents under Azure Information Protection you will need to provide user credentials or to click in opened popup but this will disappear shortly after first few interactions when credentials are cached.
